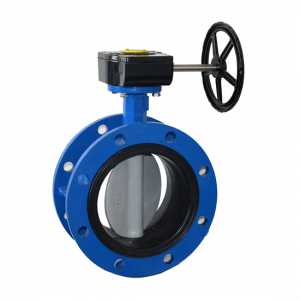

描述
阀体材质:WCB、304、316、316L等
阀板材质:WCB、304,316,316L
阀座材质:PTFE、R-TFE、合金等
连接方式:对夹式、法兰式
法兰标准:GB、ANSI、JIS、DIN
压力等级:PN10、PN16、PN25、PN40、class150LB、class300LB
气动执行器:双作用、单作用常闭、单作用常开
气动附件:电磁阀、空气过滤减压阀、电气定位器、手轮等
CLASS 150LB
SIZE | A | B | C | D | E | Top Flange | G | L | WT(kg) | |
DN | INCH | Class150 | ||||||||
50 | 2″ | 126 | 79 | 13.5 | 92 | 11 | F05 | 45 | 43 | 3 |
65 | 2 1/2″ | 126 | 87 | 13.5 | 105 | 11 | F05 | 45 | 46 | 4 |
80 | 3″ | 145 | 100 | 17.5 | 130 | 11 | F07 | 72 | 48 | 5 |
100 | 4″ | 170 | 124 | 17.5 | 157 | 14 | F07 | 91 | 54 | 6 |
125 | 5″ | 185 | 144 | 17.5 | 186 | 14 | F07 | 114 | 57 | 9 |
150 | 6″ | 203 | 150 | 18.5 | 216 | 17 | F10 | 145 | 57 | 12 |
200 | 8″ | 239 | 186 | 24.5 | 269 | 22 | F10 | 192 | 64 | 19 |
250 | 10″ | 275 | 226 | 24.5 | 324 | 22 | F10 | 240 | 71 | 33 |
300 | 12″ | 307 | 251 | 30 | 380 | 27 | F12 | 285 | 81 | 42 |
350 | 14″ | 337 | 294 | 30 | 416 | 27 | F12 | 328 | 92 | 61 |
400 | 16″ | 368 | 320 | 30 | 476 | 27 | F14 | 373 | 102 | 88 |
450 | 18″ | 406 | 341 | 39 | 534 | 36 | F16 | 422 | 114 | 135 |
500 | 20″ | 442 | 383 | 49 | 588 | 46 | F16 | 470 | 127 | 173 |
600 | 24″ | 493 | 442 | 49 | 692 | 46 | F25 | 570 | 154 | 272 |
CLASS 300LB
SIZE | A | B | C | D | E | Top Flange | G | L | WT(kg) | |
DN | INCH | Class300 | ||||||||
50 | 2″ | 126 | 79 | 13.5 | 92 | 11 | F05 | 45 | 43 | 3 |
65 | 2 1/2″ | 126 | 87 | 13.5 | 105 | 11 | F05 | 45 | 46 | 4 |
80 | 3″ | 145 | 100 | 17.5 | 130 | 11 | F07 | 72 | 48 | 5 |
100 | 4″ | 170 | 124 | 17.5 | 157 | 14 | F07 | 91 | 54 | 6 |
125 | 5″ | 185 | 144 | 17.5 | 186 | 14 | F07 | 114 | 57 | 9 |
150 | 6″ | 203 | 150 | 18.5 | 216 | 17 | F10 | 145 | 57 | 12 |
200 | 8″ | 257 | 204 | 24.5 | 269 | 22 | F10 | 192 | 73 | 23 |
250 | 10″ | 288 | 238 | 30 | 324 | 27 | F12 | 240 | 83 | 39 |
300 | 12″ | 330 | 268 | 30 | 380 | 27 | F12 | 285 | 92 | 55 |
350 | 14″ | 337 | 294 | 39 | 416 | 36 | F14 | 320 | 117 | 79 |
400 | 16″ | 368 | 320 | 49 | 476 | 46 | F16 | 363 | 133 | 103 |
450 | 18″ | 406 | 341 | 49 | 534 | 46 | F16 | 400 | 149 | 170 |
500 | 20″ | 442 | 383 | 49 | 588 | 46 | F25 | 450 | 159 | 225 |
600 | 24″ | 500 | 442 | 58 | 692 | 55 | F25 | 550 | 181 | 338 |
